Launch Methods

Launching from Command Line

To launch Choreonoid using command input from a terminal, which is common on operating systems like Linux, you enter the command “choreonoid”, which is the executable file for Choreonoid. (On Windows, similar operations are possible using a system tool called “Command Prompt”.)

This command is located in the “bin” directory of the installation destination. If the path is set to that directory, you can simply launch it by typing

choreonoid

Alternatively, when you build Choreonoid from source, the executable file is first generated in the bin directory of the build directory. You can also directly execute that executable file. For example, if you performed the build in a build directory called “build” within the source directory, you can launch Choreonoid by entering the following in the terminal:

cd [source directory]
./build/bin/choreonoid

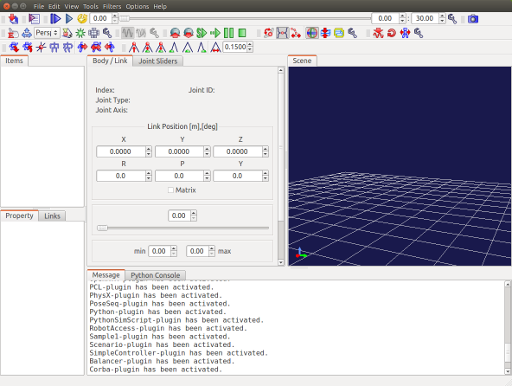

When launched, Choreonoid’s main window as shown below will be displayed.

Launching from File Manager

On operating systems like Windows, the command line operations described above may not be very common. In such cases, you can also run Choreonoid from file manager software like Windows Explorer. Open the Choreonoid installation folder with the file manager, and launch it by double-clicking the executable file in the bin directory (on Linux it’s “choreonoid”, on Windows it’s “choreonoid.exe”).

Launching from Application Menu

When Choreonoid is installed using the installer on Windows, a Choreonoid item is added to the Start menu, so it’s also possible to launch Choreonoid from the Start menu. Even on operating systems other than Windows or when not using an installer on Windows, you can register the Choreonoid executable file mentioned above in the menu.

Specifying Project Files with Command Line Arguments

For “projects” described in Projects and Items, it’s also possible to have them loaded when Choreonoid starts up. To do this, you specify a “project file” as a command line argument when launching Choreonoid. For example, to load a project file called “project1.cnoid” in the current directory, you can specify it as follows:

choreonoid project1.cnoid

If you’re familiar with the command line, this method allows you to efficiently load project files.

Also, by using the OS file association feature to associate files with the “.cnoid” extension with the choreonoid executable file, it becomes possible to launch Choreonoid with that project file simply by double-clicking the project file from the file manager. The Windows installer performs such associations during installation.

Launch Mode without Showing the Window

When you launch Choreonoid with the command line option --no-window, it starts without showing the main window. This form of running a program without showing its GUI is generally called “headless mode” or “headless execution”.

choreonoid --no-window project1.cnoid

In this mode, the text output to the message view is put to the standard output, so you can check the operation status on the terminal. Also, the launched Choreonoid can be terminated by entering Ctrl+C on the terminal.

Note that on Unix-like operating systems such as Linux, when Choreonoid is launched in an environment where no window system is available (an environment where neither the DISPLAY nor WAYLAND_DISPLAY environment variable is set), it automatically switches to this mode even without this option.

This mode is usually used in combination with Python scripts for purposes such as automatically performing the batch execution of simulations. For the specific ways to utilize it, refer to the Headless Execution without Showing the Window section in Executing Scripts from the Command Line of the Python Scripting chapter.

List of Command Line Options

The main command line options available for the choreonoid command are summarized below.

Note that when files are directly specified as command line arguments, they are loaded or executed according to their types, such as project files (.cnoid), body files (.body), and Python scripts (.py).

Option	Function
-h, –help	Shows the list of the options and exits.
–project file	Loads a project file.
–body file	Loads a body file.
–python file (short form -p)	Executes a Python script at startup. (See Executing Scripts from the Command Line.)
–python-item file	Loads a Python script as an item. (See Executing Scripts from the Command Line.)
–start-simulation	Automatically starts the simulation at startup.
–start-playback	Automatically starts the animation playback at startup.
–no-window	Runs Choreonoid without showing windows. (See Launch Mode without Showing the Window.)
–test-mode	Exits the application at the point when an error occurs. In addition, the text output to the message view is also output to the standard output. This is useful for test automation.
–quit	Exits the application after performing only the startup processing, without showing the main window.
–list-qt-styles	Outputs the list of the available Qt styles.
–path-variable name=path	Adds a path variable that can be used in the path descriptions of project files and so on.
–add-plugin-dir-as-prefix directory	Adds a plugin directory as an install path prefix.

In addition to these, some options may be added by the loaded plugins. The list of the options available in your environment can be checked with

choreonoid --help
