cnoid::SgMeshBase Class Reference

#include <SceneDrawables.h>

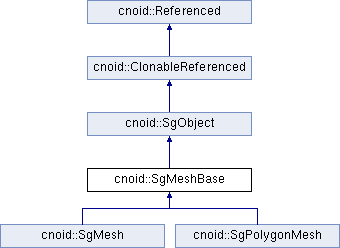

Inheritance diagram for cnoid::SgMeshBase:
cnoid::SgObject cnoid::ClonableReferenced cnoid::Referenced cnoid::SgMesh cnoid::SgPolygonMesh

Public Member Functions

virtual int numChildObjects () const override

virtual SgObject * childObject (int index) override

const BoundingBox & boundingBox () const

virtual void updateBoundingBox ()

void setBoundingBox (const BoundingBox &bb)

void setBoundingBox (const BoundingBoxf &bb)

bool hasVertices () const

SgVertexArray * vertices ()

const SgVertexArray * vertices () const

SgVertexArray * setVertices (SgVertexArray *vertices)

SgVertexArray * getOrCreateVertices (int size=0)

bool hasNormals () const

SgNormalArray * normals ()

const SgNormalArray * normals () const

SgNormalArray * setNormals (SgNormalArray *normals)

SgNormalArray * getOrCreateNormals ()

bool hasColors () const

SgColorArray * colors ()

const SgColorArray * colors () const

SgColorArray * setColors (SgColorArray *colors)

SgColorArray * getOrCreateColors (int size=0)

bool hasTexCoords () const

SgTexCoordArray * texCoords ()

const SgTexCoordArray * texCoords () const

SgTexCoordArray * setTexCoords (SgTexCoordArray *texCoords)

SgTexCoordArray * getOrCreateTexCoords ()

bool hasFaceVertexIndices () const

const SgIndexArray & faceVertexIndices () const

SgIndexArray & faceVertexIndices ()

bool hasNormalIndices () const

const SgIndexArray & normalIndices () const

SgIndexArray & normalIndices ()

bool hasColorIndices () const

const SgIndexArray & colorIndices () const

SgIndexArray & colorIndices ()

bool hasTexCoordIndices () const

const SgIndexArray & texCoordIndices () const

SgIndexArray & texCoordIndices ()

float creaseAngle () const

void setCreaseAngle (float angle)

bool isSolid () const

void setSolid (bool on)

- Public Member Functions inherited from cnoid::SgObject
SgObject * clone () const

SgObject * clone (CloneMap &cloneMap) const

void setAttribute (int attr)

void setAttributes (int attrs)

int attributes () const

bool hasAttribute (int attr) const

bool hasAttributes (int attrs) const

const std::string & name () const

void setName (const std::string &name)

SignalProxy< void(const SgUpdate &update)> sigUpdated ()

void notifyUpdate (SgUpdate &update)

void notifyUpdate (int action=SgUpdate::Modified)

void addParent (SgObject *parent, SgUpdateRef update=nullptr)

void removeParent (SgObject *parent)

int numParents () const

bool hasParents () const

const_parentIter parentBegin () const

const_parentIter parentEnd () const

SignalProxy< void(bool on)> sigGraphConnection ()

bool hasValidBoundingBoxCache () const

void invalidateBoundingBox ()

void setBoundingBoxCacheReady () const

bool hasUri () const

const std::string & uri () const

bool hasAbsoluteUri () const

const std::string & absoluteUri () const

bool hasUriFragment () const

const std::string & uriFragment () const

void setUriByFilePathAndBaseDirectory (const std::string &filePath, const std::string &baseDirectory)

void setUriByFilePathAndCurrentDirectory (const std::string &filePath)

void setUri (const std::string &uri, const std::string &absoluteUri)

void setUriFragment (const std::string &fragment)

void clearUri ()

bool isNode () const

SgNode * toNode ()

bool isGroupNode () const

SgGroup * toGroupNode ()

bool isTransformNode () const

SgTransform * toTransformNode ()

- Public Member Functions inherited from cnoid::Referenced
virtual ~Referenced ()


Protected Member Functions

 SgMeshBase ()

 SgMeshBase (const SgMeshBase &org, CloneMap *cloneMap=nullptr)

 ~SgMeshBase ()

- Protected Member Functions inherited from cnoid::SgObject
 SgObject ()

 SgObject (const SgObject &org)

virtual Referenced * doClone (CloneMap *cloneMap) const override

void notifyUpperNodesOfUpdate (SgUpdate &update)

void notifyUpperNodesOfUpdate (SgUpdate &update, bool doInvalidateBoundingBox)

- Protected Member Functions inherited from cnoid::Referenced
 Referenced ()

 Referenced (const Referenced &)

int refCount () const


Protected Attributes

BoundingBox bbox

SgVertexArrayPtr vertices_

SgIndexArray faceVertexIndices_

SgNormalArrayPtr normals_

SgIndexArray normalIndices_

SgColorArrayPtr colors_

SgIndexArray colorIndices_

SgTexCoordArrayPtr texCoords_

SgIndexArray texCoordIndices_

float creaseAngle_

bool isSolid_


Additional Inherited Members

- Public Types inherited from cnoid::SgObject
enum  Attribute {
  Node = 1 << 0, GroupNode = 1 << 1, TransformNode = 1 << 2, Composite = 1 << 3,
  Geometry = 1 << 4, Appearance = 1 << 5, NodeDecoration = 1 << 6, Marker = 1 << 7,
  Operable = 1 << 8, MaxAttributeBit = 9, GroupAttribute = GroupNode, NodeDecorationGroup = NodeDecoration,
  MarkerAttribute = Marker
}

typedef std::set< SgObject * > ParentContainer

typedef ParentContainer::iterator parentIter

typedef ParentContainer::const_iterator const_parentIter

- Static Public Member Functions inherited from cnoid::SgObject
static bool checkNonNodeCloning (const CloneMap &cloneMap)

static void setNonNodeCloning (CloneMap &cloneMap, bool on)


Constructor & Destructor Documentation

◆ SgMeshBase() [1/2]

SgMeshBase::SgMeshBase ( )
protected

◆ SgMeshBase() [2/2]

SgMeshBase::SgMeshBase ( const SgMeshBase &  org,
CloneMap *  cloneMap = nullptr
)
protected

◆ ~SgMeshBase()

SgMeshBase::~SgMeshBase ( )
protected

Member Function Documentation

◆ boundingBox()

const BoundingBox& cnoid::SgMeshBase::boundingBox ( ) const
inline

◆ childObject()

SgObject * SgMeshBase::childObject ( int  index)
overridevirtual

Reimplemented from cnoid::SgObject.

◆ colorIndices() [1/2]

SgIndexArray& cnoid::SgMeshBase::colorIndices ( )
inline

◆ colorIndices() [2/2]

const SgIndexArray& cnoid::SgMeshBase::colorIndices ( ) const
inline

◆ colors() [1/2]

SgColorArray* cnoid::SgMeshBase::colors ( )
inline

◆ colors() [2/2]

const SgColorArray* cnoid::SgMeshBase::colors ( ) const
inline

◆ creaseAngle()

float cnoid::SgMeshBase::creaseAngle ( ) const
inline

◆ faceVertexIndices() [1/2]

SgIndexArray& cnoid::SgMeshBase::faceVertexIndices ( )
inline

◆ faceVertexIndices() [2/2]

const SgIndexArray& cnoid::SgMeshBase::faceVertexIndices ( ) const
inline

◆ getOrCreateColors()

SgColorArray * SgMeshBase::getOrCreateColors ( int  size = 0)

◆ getOrCreateNormals()

SgNormalArray * SgMeshBase::getOrCreateNormals ( )

◆ getOrCreateTexCoords()

SgTexCoordArray * SgMeshBase::getOrCreateTexCoords ( )

◆ getOrCreateVertices()

SgVertexArray * SgMeshBase::getOrCreateVertices ( int  size = 0)

◆ hasColorIndices()

bool cnoid::SgMeshBase::hasColorIndices ( ) const
inline

◆ hasColors()

bool cnoid::SgMeshBase::hasColors ( ) const
inline

◆ hasFaceVertexIndices()

bool cnoid::SgMeshBase::hasFaceVertexIndices ( ) const
inline

◆ hasNormalIndices()

bool cnoid::SgMeshBase::hasNormalIndices ( ) const
inline

Normals are assinged for vertices in triangles.

◆ hasNormals()

bool cnoid::SgMeshBase::hasNormals ( ) const
inline

◆ hasTexCoordIndices()

bool cnoid::SgMeshBase::hasTexCoordIndices ( ) const
inline

◆ hasTexCoords()

bool cnoid::SgMeshBase::hasTexCoords ( ) const
inline

◆ hasVertices()

bool cnoid::SgMeshBase::hasVertices ( ) const
inline

◆ isSolid()

bool cnoid::SgMeshBase::isSolid ( ) const
inline

◆ normalIndices() [1/2]

SgIndexArray& cnoid::SgMeshBase::normalIndices ( )
inline

◆ normalIndices() [2/2]

const SgIndexArray& cnoid::SgMeshBase::normalIndices ( ) const
inline

◆ normals() [1/2]

SgNormalArray* cnoid::SgMeshBase::normals ( )
inline

◆ normals() [2/2]

const SgNormalArray* cnoid::SgMeshBase::normals ( ) const
inline

◆ numChildObjects()

int SgMeshBase::numChildObjects ( ) const
overridevirtual

Reimplemented from cnoid::SgObject.

◆ setBoundingBox() [1/2]

void cnoid::SgMeshBase::setBoundingBox ( const BoundingBox &  bb)
inline

◆ setBoundingBox() [2/2]

void cnoid::SgMeshBase::setBoundingBox ( const BoundingBoxf &  bb)
inline

◆ setColors()

SgColorArray * SgMeshBase::setColors ( SgColorArray *  colors)

◆ setCreaseAngle()

void cnoid::SgMeshBase::setCreaseAngle ( float  angle)
inline

◆ setNormals()

SgNormalArray * SgMeshBase::setNormals ( SgNormalArray *  normals)

◆ setSolid()

void cnoid::SgMeshBase::setSolid ( bool  on)
inline

◆ setTexCoords()

SgTexCoordArray * SgMeshBase::setTexCoords ( SgTexCoordArray *  texCoords)

◆ setVertices()

SgVertexArray * SgMeshBase::setVertices ( SgVertexArray *  vertices)

◆ texCoordIndices() [1/2]

SgIndexArray& cnoid::SgMeshBase::texCoordIndices ( )
inline

◆ texCoordIndices() [2/2]

const SgIndexArray& cnoid::SgMeshBase::texCoordIndices ( ) const
inline

◆ texCoords() [1/2]

SgTexCoordArray* cnoid::SgMeshBase::texCoords ( )
inline

◆ texCoords() [2/2]

const SgTexCoordArray* cnoid::SgMeshBase::texCoords ( ) const
inline

◆ updateBoundingBox()

void SgMeshBase::updateBoundingBox ( )
virtual

Reimplemented in cnoid::SgPolygonMesh, and cnoid::SgMesh.

◆ vertices() [1/2]

SgVertexArray* cnoid::SgMeshBase::vertices ( )
inline

◆ vertices() [2/2]

const SgVertexArray* cnoid::SgMeshBase::vertices ( ) const
inline

Member Data Documentation

◆ bbox

BoundingBox cnoid::SgMeshBase::bbox
protected

◆ colorIndices_

SgIndexArray cnoid::SgMeshBase::colorIndices_
protected

◆ colors_

SgColorArrayPtr cnoid::SgMeshBase::colors_
protected

◆ creaseAngle_

float cnoid::SgMeshBase::creaseAngle_
protected

◆ faceVertexIndices_

SgIndexArray cnoid::SgMeshBase::faceVertexIndices_
protected

◆ isSolid_

bool cnoid::SgMeshBase::isSolid_
protected

◆ normalIndices_

SgIndexArray cnoid::SgMeshBase::normalIndices_
protected

◆ normals_

SgNormalArrayPtr cnoid::SgMeshBase::normals_
protected

◆ texCoordIndices_

SgIndexArray cnoid::SgMeshBase::texCoordIndices_
protected

◆ texCoords_

SgTexCoordArrayPtr cnoid::SgMeshBase::texCoords_
protected

◆ vertices_

SgVertexArrayPtr cnoid::SgMeshBase::vertices_
protected
The documentation for this class was generated from the following files:
