#include <BodyTrackingCameraItem.h>

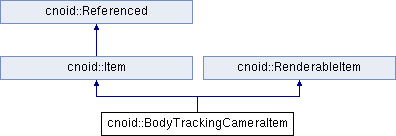

Inheritance diagram for cnoid::BodyTrackingCameraItem:

Public Types
enum	CameraType { Perspective, Orthographic, NumCameraTypes, PERSPECTIVE = Perspective, ORTHOGRAPHIC = Orthographic, N_CAMERA_TYPE }

Public Types inherited from cnoid::Item
enum	Attribute { SubItem, Attached, Temporal, LoadOnly, NumAttributes, SUB_ITEM = SubItem, TEMPORAL = Temporal, LOAD_ONLY = LoadOnly }

enum	CheckId { LogicalSumOfAllChecks = -1, PrimaryCheck = 0 }

typedef std::function< bool(Item *item)>	ItemPredicate

Public Member Functions
	BodyTrackingCameraItem ()

	BodyTrackingCameraItem (const BodyTrackingCameraItem &org)

	~BodyTrackingCameraItem ()

virtual bool	setName (const std::string &name) override

void	setTargetLink (const std::string &name)

const std::string &	targetLinkName () const

void	setRotationSyncEnabled (bool on)

bool	isRotationSyncEnabled () const

void	setCameraType (CameraType type)

CameraType	cameraType () const

SgCamera *	currentCamera ()

SgPosTransform *	cameraTransform ()

virtual SgNode *	getScene () override

Public Member Functions inherited from cnoid::Item
virtual	~Item ()

Item &	operator= (const Item &rhs)=delete

int	classId () const

Item *	createNewInstance () const

void	assign (Item *srcItem)
	Copy item properties as much as possible like the assignment operator. More...

Item *	duplicate (Item *duplicatedParentItem=nullptr) const

Item *	duplicateSubTree () const
	This function creates a copy of the item including its descendant items. More...

Item *	duplicateAll () const

const std::string &	name () const

virtual std::string	displayName () const

void	setDisplayNameModifier (std::function< std::string(const Item *item)> modifier)

SignalProxy< void(const std::string &oldName)>	sigNameChanged ()

void	notifyNameChange ()

void	setAttribute (Attribute attribute)

void	unsetAttribute (Attribute attribute)

bool	hasAttribute (Attribute attribute) const

bool	isSubItem () const

void	setSubItemAttributes ()

bool	isTemporal () const

void	setTemporal (bool on=true)

bool	isSelected () const

void	setSelected (bool on, bool isCurrent=false)

void	setSubTreeItemsSelected (bool on)

bool	isChecked (int checkId=PrimaryCheck) const

void	setChecked (bool on)

void	setChecked (int checkId, bool on)

int	numCheckStates () const

int	numChildren () const

int	countDescendantItems () const

Item *	childItem () const

Item *	prevItem () const

Item *	nextItem () const

Item *	lastChildItem () const

Item *	parentItem () const

Item *	headItem () const

RootItem *	findRootItem () const

bool	isConnectedToRoot () const

Item *	localRootItem () const

bool	addChildItem (Item *item, bool isManualOperation=false)

bool	insertChildItem (Item item, Item nextItem, bool isManualOperation=false)

bool	insertChild (Item position, Item item, bool isManualOperation=false)

bool	addSubItem (Item *item)

bool	insertSubItem (Item item, Item nextItem)

void	removeFromParentItem ()

void	detachFromParentItem ()

void	clearChildren ()

template<class ItemType >
ItemType *	find (const std::string &path="")

Item *	findItem (const std::string &path) const

template<class ItemType >
ItemType *	findItem (const std::string &path) const

template<class ItemType >
ItemType *	findItem (std::function< bool(ItemType *item)> pred=nullptr) const

Item *	findChildItem (const std::string &path, std::function< bool(Item *item)> pred=nullptr) const

template<class ItemType >
ItemType *	findChildItem (const std::string &path, std::function< bool(ItemType *item)> pred=nullptr) const

template<class ItemType >
ItemType *	findChildItem (std::function< bool(ItemType *item)> pred=nullptr) const

Item *	findSubItem (const std::string &path) const

template<class ItemType >
ItemType *	findSubItem (const std::string &path="") const

template<class ItemType >
ItemType *	findOwnerItem (bool includeSelf=false) const

bool	isOwnedBy (Item *item) const

ItemList	childItems (std::function< bool(Item *item)> pred=nullptr) const

template<class ItemType >
ItemList< ItemType >	childItems (std::function< bool(ItemType *item)> pred=nullptr) const

ItemList	descendantItems (std::function< bool(Item *item)> pred=nullptr) const

template<class ItemType >
ItemList< ItemType >	descendantItems (std::function< bool(ItemType *item)> pred=nullptr) const

ItemList	selectedDescendantItems (std::function< bool(Item *item)> pred=nullptr) const

template<class ItemType >
ItemList< ItemType >	selectedDescendantItems (std::function< bool(Item *item)> pred=nullptr) const

bool	traverse (std::function< bool(Item *)> pred)

template<class ItemType >
bool	traverse (std::function< bool(ItemType *item)> pred=nullptr)

SignalProxy< void()>	sigPositionChanged ()

SignalProxy< void(Item topItem, Item prevTopParentItem)>	sigPositionChanged2 ()

SignalProxy< void()>	sigSubTreeChanged ()

SignalProxy< void()>	sigDisconnectedFromRoot ()

SignalProxy< void()>	sigDetachedFromRoot ()

SignalProxy< void(bool on)>	sigSelectionChanged ()

SignalProxy< void(int checkId, bool on)>	sigAnyCheckToggled ()

SignalProxy< void(bool on)>	sigCheckToggled (int checkId=PrimaryCheck)

virtual void	notifyUpdate ()

SignalProxy< void()>	sigUpdated ()

bool	setAddon (ItemAddon *addon)

void	removeAddon (ItemAddon *addon)

template<class AddonType >
AddonType *	findAddon ()

template<class AddonType >
AddonType *	getAddon ()

std::vector< ItemAddon * >	addons ()

bool	load (const std::string &filename, const std::string &format=std::string(), const Mapping *options=nullptr)

bool	load (const std::string &filename, Item parent, const std::string &format=std::string(), const Mapping options=nullptr)

bool	save (const std::string &filename, const std::string &format=std::string(), const Mapping *options=nullptr)

bool	overwrite (bool forceOverwrite=false, const std::string &format=std::string())

const std::string &	filePath () const

std::string	fileName () const

const std::string &	fileFormat () const

const Mapping *	fileOptions () const

std::time_t	fileModificationTime () const

bool	isConsistentWithFile () const

void	updateFileInformation (const std::string &filename, const std::string &format, Mapping *options=nullptr)

void	setConsistentWithFile (bool isConsistent)

void	suggestFileUpdate ()

void	clearFileInformation ()
	Use this function to disable the implicit overwrite next time. More...

bool	reload ()

bool	replace (Item *originalItem)

Item *	findOriginalItem () const

Item *	findReplacementItem () const

void	putProperties (PutPropertyFunction &putProperty)

Public Member Functions inherited from cnoid::Referenced
virtual	~Referenced ()

Public Member Functions inherited from cnoid::RenderableItem
	RenderableItem ()

virtual	~RenderableItem ()

virtual bool	isSceneSensitive ()

virtual void	setSceneSensitive (bool on)

virtual SignalProxy< void(bool on)>	sigSceneSensitiveChanged ()

Static Public Member Functions
static void	initializeClass (ExtensionManager *ext)

Static Public Member Functions inherited from cnoid::Item
template<class ItemType >
static ItemPredicate	getItemPredicate ()

template<class ItemType >
static ItemPredicate	getItemPredicate (std::function< bool(ItemType *item)> pred)

static Item *	find (const std::string &path)

Protected Member Functions
virtual Item *	doDuplicate () const override
	Override this function to allow duplication of an instance. More...

virtual void	onPositionChanged () override

virtual void	doPutProperties (PutPropertyFunction &putProperty) override

virtual bool	store (Archive &archive) override

virtual bool	restore (const Archive &archive) override

Protected Member Functions inherited from cnoid::Item
	Item ()

	Item (const std::string &name)

	Item (const Item &item)

virtual void	doAssign (Item *srcItem)
	Implement the code to copy properties like the assingment operator. More...

virtual Item *	doDuplicate (Item *duplicatedParentItem) const

virtual bool	onNewPositionCheck (bool isManualOperation, std::function< void()> &out_callbackWhenAdded)

virtual void	onAddedToParent ()

virtual void	onConnectedToRoot ()

virtual void	onRemovedFromParent (Item *parentItem, bool isParentBeingDeleted)

virtual void	onDisconnectedFromRoot ()

virtual bool	onChildItemAboutToBeAdded (Item *childItem, bool isManualOperation)

Protected Member Functions inherited from cnoid::Referenced
	Referenced ()

	Referenced (const Referenced &)

int	refCount () const

Member Enumeration Documentation

◆ CameraType

enum cnoid::BodyTrackingCameraItem::CameraType

Enumerator
Perspective
Orthographic
NumCameraTypes
PERSPECTIVE
ORTHOGRAPHIC
N_CAMERA_TYPE

Constructor & Destructor Documentation

◆ BodyTrackingCameraItem() [1/2]

BodyTrackingCameraItem::BodyTrackingCameraItem ( )

◆ BodyTrackingCameraItem() [2/2]

BodyTrackingCameraItem::BodyTrackingCameraItem ( const BodyTrackingCameraItem & org )

◆ ~BodyTrackingCameraItem()

BodyTrackingCameraItem::~BodyTrackingCameraItem ( )

Member Function Documentation

◆ cameraTransform()

SgPosTransform * BodyTrackingCameraItem::cameraTransform ( )

◆ cameraType()

BodyTrackingCameraItem::CameraType BodyTrackingCameraItem::cameraType ( ) const

◆ currentCamera()

SgCamera * BodyTrackingCameraItem::currentCamera ( )

◆ doDuplicate()

Item * BodyTrackingCameraItem::doDuplicate ( ) const

overrideprotectedvirtual

Override this function to allow duplication of an instance.

Reimplemented from cnoid::Item.

◆ doPutProperties()

void BodyTrackingCameraItem::doPutProperties ( PutPropertyFunction & putProperty )

overrideprotectedvirtual

Override this function to put properties of the item.

Note: Please call doPutProperties() of the parent class in this function. For example, when your class directly inherits the Item class, call Item::doPutProperties(putProperty).

Reimplemented from cnoid::Item.

◆ getScene()

SgNode * BodyTrackingCameraItem::getScene ( )

overridevirtual

Implements cnoid::RenderableItem.

◆ initializeClass()

void BodyTrackingCameraItem::initializeClass ( ExtensionManager * ext )

static

◆ isRotationSyncEnabled()

bool BodyTrackingCameraItem::isRotationSyncEnabled ( ) const

◆ onPositionChanged()

void BodyTrackingCameraItem::onPositionChanged ( )

overrideprotectedvirtual

This function is called when the item position in the whole item tree is changed. Note that this function is not called when the item is not connected to the root even if the item is newly attached to another item that is not connected to the root. For such items, the function is called for each item when the sub tree is connected to the root.

Reimplemented from cnoid::Item.

◆ restore()

bool BodyTrackingCameraItem::restore ( const Archive & archive )

overrideprotectedvirtual

Reimplemented from cnoid::Item.

◆ setCameraType()

void BodyTrackingCameraItem::setCameraType ( CameraType type )

◆ setName()

bool BodyTrackingCameraItem::setName ( const std::string & name )

overridevirtual

Reimplemented from cnoid::Item.

◆ setRotationSyncEnabled()

void BodyTrackingCameraItem::setRotationSyncEnabled ( bool on )

◆ setTargetLink()

void BodyTrackingCameraItem::setTargetLink ( const std::string & name )

◆ store()

bool BodyTrackingCameraItem::store ( Archive & archive )

overrideprotectedvirtual

Reimplemented from cnoid::Item.

◆ targetLinkName()

const std::string & BodyTrackingCameraItem::targetLinkName ( ) const

The documentation for this class was generated from the following files:
